Vertilux Blinds & Shades® | VTX20 Designer Tab Mount 1 ½" (38mm) Core

Products

VTX20 Designer Tab Mount 1 ½" (38mm) Core

0-154-DC-V20BK
Black

0-154-DC-V20BR
Brown

0-154-DC-V20GR
Grey

0-154-DC-V20IV
Ivory

0-154-DC-V20WH
White

Installations Options

38mm (1 ½") Tube - Option 1: 38mm (1 ½") Projection Brackets

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-TU-380XX	1 ½" (38 mm) Aluminum Tube		FT
	0-154-EX-00038	TM End Plug 1½" (38mm)	1	EA

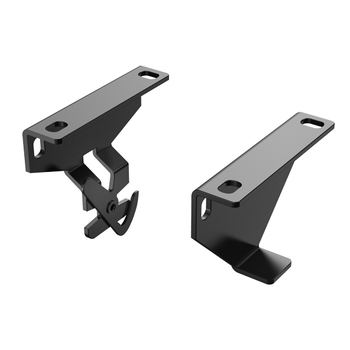

	0-154-BX-56038	Installation Brackets \| Large TM \| 1½" (38mm) Projection	1	SET

38mm (1 ½") Tube - Option 2: 50mm (2") Projection Brackets

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-TU-380XX	1 ½" (38 mm) Aluminum Tube		FT
	0-155-EX-SLE53	HM End Plug 1½" (38mm) \| Spring Loaded	1	EA
	0-154-BX-TM020	Easy-Tab Bracket \| Large Tab \| 2" (50mm) Projection	1	EA
	0-155-BX-SL020	Installation Bracket \| HM \| 2" (50mm) Projection	1	EA
	0-155-CO-SL20X	Cover for HM Installation Braket with 2" (50mm) Projection	2	EA

45mm (1 ¾") Tube - Option 1: Structural Tube - Internal Diameter: 38mm (1 ½")

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-AD-00045	Adapter for 45 mm Heavy Duty Structural Tube, End Plug Side	1	EA
	0-154-EX-00038	TM End Plug 1½" (38mm)	1	EA
	0-154-BX-58050	Installation Brackets \| Large TM \| 2" (50mm) Projection	1	SET
	0-154-CO-580X0	Cover for Large TM Installation Braket with 2"(50mm) Projection	1	SET

45mm (1 ¾") Tube - Option 2: Double Insert Tube, 38mm (1 ½") Projection Brackets

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-TU-452XX	1¾" (45mm) Tube (Two Channels)		FT
	0-154-PA-XXX01	End Plug Adapter for 1 3/4" (45mm) Tube	1	EA
	0-154-PE-XXX01	End Plug for Euro Brackets 1½" (38mm)	1	EA
	0-154-PB-E04XX	EURO Medium Bracket \| Large TM \| 2" (50mm) Projection	1	EA
	0-154-PB-E03XX	EURO Medium Bracket \| HM \| 2" (50mm) Projection	1	EA
	0-154-PC-E01XX	Cover for EURO Medium Bracket	2	EA
	0-154-PC-003XX	Screw Cover for EURO Medium Bracket	2	EA

45mm (1 ¾") Tube - Option 2: Double Insert Tube, 50mm (2") Projection Brackets

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-PA-XXX01	End Plug Adapter for 1 3/4" (45mm) Tube	1	EA
	0-154-PE-XXX01	End Plug for Euro Brackets 1½" (38mm)	1	EA
	0-154-PB-E06XX	EURO Large Bracket \| Large TM \| 2⅜" (60mm) Projection	1	EA
	0-154-PB-E05XX	EURO Large Bracket \| HM \| 2⅜" (60mm) Projection	1	EA
	0-154-PC-E02XX	Cover for EURO Large Bracket	2	EA
	0-154-PC-004XX	Screw Cover for EURO Large Bracket	2	EA

50mm (2") Tube - Option 1: 50mm (2") Projection Brackets

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-AD-XA250	Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30	2	EA
	0-154-EX-00038	TM End Plug 1½" (38mm)	1	EA
	0-154-BX-58050	Installation Brackets \| Large TM \| 2" (50mm) Projection	1	SET
	0-154-CO-580X0	Cover for Large TM Installation Braket with 2"(50mm) Projection	1	SET
	0-154-TU-500XX	2" (50 mm) Aluminum Tube		FT

50mm (2") Tube - Option 2: 50mm (2") Projection Brackets

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-TU-500XX	2" (50 mm) Aluminum Tube		FT
	0-154-AD-XA250	Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30	1	EA
	0-155-EX-SLE53	HM End Plug 1½" (38mm) \| Spring Loaded	1	EA
	0-154-BX-TM020	Easy-Tab Bracket \| Large Tab \| 2" (50mm) Projection	1	EA
	0-155-BX-SL020	Installation Bracket \| HM \| 2" (50mm) Projection	1	EA
	0-155-CO-SL20X	Cover for HM Installation Braket with 2" (50mm) Projection	2	EA

50mm (2") Tube - Option 3: 38mm (1 ½") Projection Brackets

Imagen	Code	Descripcion	Cantidad	Unidad
	0-154-TU-500XX	2" (50 mm) Aluminum Tube		FT
	0-154-PE-XXX01	End Plug for Euro Brackets 1½" (38mm)	1	EA
	0-154-PB-E04XX	EURO Medium Bracket \| Large TM \| 2" (50mm) Projection	1	EA
	0-154-PB-E03XX	EURO Medium Bracket \| HM \| 2" (50mm) Projection	1	EA
	0-154-PC-E01XX	Cover for EURO Medium Bracket	1	EA
	0-154-PC-003XX	Screw Cover for EURO Medium Bracket	1	EA
	0-154-PA-0XX03	Rollux 50mm Smooth Tube Adapter for VTX20	1	EA
	0-154-PS-ES0LX	Euro Idler End Support Set	1	Set
	0-154-PS-ES0RX	Euro Idler End Support Set for Right Side	1	Set

General Information

Item Code: 0-154-DC-V20XX

Packing Unit: 50 Pcs per Box

Unit of Measurement: EA

Share it

Applications(s):

Roller Shades

Neolux Dual Shades
